Begin with a mechanical yes or no
Clean the bicycle enough to inspect it properly. Look at the head tube, bottom bracket area, dropouts, fork, chainstays and seat cluster. Cracks, suspicious deformation, severe corrosion or evidence of a previous collision require a qualified assessment. Paint can conceal damage, and a frame that feels solid in a short ride is not automatically suitable for added equipment.
Check wheel trueness, spoke tension, headset play, hub bearings and bottom bracket condition. Inspect tyres for deterioration and confirm their load and pressure guidance. A commuter conversion adds equipment mass and often increases how frequently the bicycle is used. Existing wear therefore matters even if your intended assistance is modest.
Record the bicycle model, approximate age and frame material. Find the manufacturer’s load limits and any restrictions on motor conversions. If the maker prohibits the modification, do not interpret the absence of immediate damage as permission. Carbon components, suspension designs and lightweight forks deserve particular caution because clamp loads and motor reaction forces may be outside their design intent.
Compare architectures, not just motor labels
A hub motor places the drive unit in a wheel. A front hub arrangement requires a suitable fork and dropout interface; it is not a universal shortcut. A rear hub arrangement must also coexist with the cassette or freewheel, brake interface and available frame spacing. Do not spread, file or machine a frame or fork to make a motor axle fit.

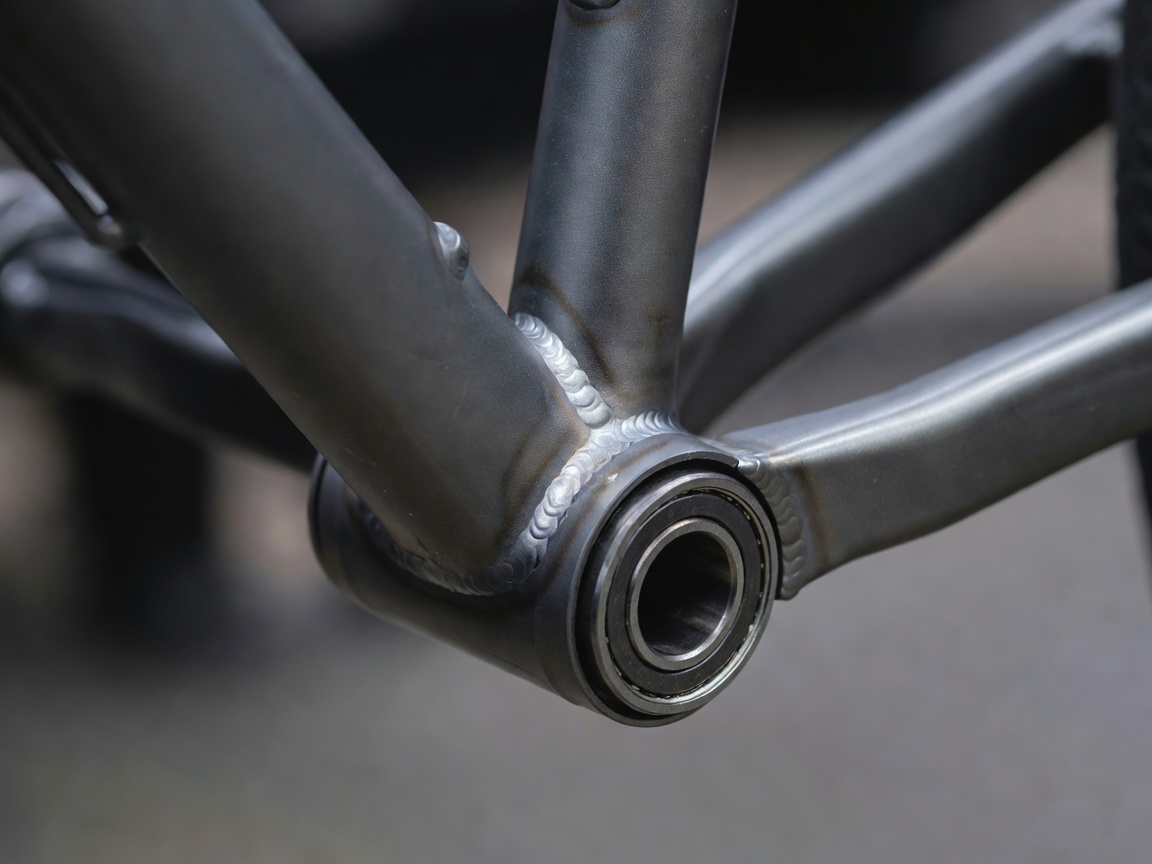

A mid-drive applies assistance through the bicycle drivetrain. Its fit depends on the exact bottom bracket standard, shell dimensions, motor housing clearance and chainline. It can increase chain and sprocket wear because motor torque travels through those parts. A threaded shell that appears familiar still needs measurement; press-fit, eccentric and unusual shells require explicit support from the kit supplier.
Brands such as Bafang and Tongsheng offer multiple systems with different requirements. A brand name alone does not establish interchangeability. Similarly, a Shimano drivetrain label does not tell you whether a particular rear motor accommodates its cassette body, gearing or chainline.
Build a compatibility record
| Area | Record | Resolve before purchase |
|---|---|---|
| Wheel | Tyre ISO marking, rim and brake type | Correct wheel diameter and braking surface |
| Axle | Dropout spacing and axle interface | Supported retention and reaction-torque arrangement |
| Bottom bracket | Standard, width and nearby clearances | Exact mid-drive fit and chainline |
| Drivetrain | Cassette or freewheel, gears, wear | Compatible motor and replacement parts |
| Whole bicycle | Load limit and manufacturer restrictions | Rider, luggage and conversion mass within limits |
Photographs help a supplier understand your bicycle, but they do not replace accurate measurements. Ask for compatibility confirmation against the exact product revision. Keep that response alongside the installation instructions and purchase record. If a seller cannot explain the required interface, an inexpensive kit may become an expensive experiment.
Treat torque retention as an engineered detail
Hub motors apply reaction torque to the axle interface. The correct washers, retention hardware and, where specified, torque arms must follow the motor and bicycle guidance. An improvised strap or a generic part that happens to fit is not evidence of adequate retention. Grin Technologies publishes useful educational material about torque arms, but the final arrangement still needs to suit the exact installation.
Use the specified fastener torque and installation order. Recheck retention at the intervals in the manual. If the dropout shape, fork material or brake hardware prevents the approved arrangement, stop and choose another solution rather than removing material or omitting a washer.
Refurbish before installing
Separate the repair budget from the conversion budget. Worn rims, tyres, drivetrain parts, brake components and bearings can make refurbishment uneconomic. Compare the total with a professionally refurbished conventional bicycle or a complete compliant e-bike. A conversion is worthwhile only if the resulting bicycle suits the journey and remains maintainable.
First restore dependable steering, rolling and braking. Then confirm kit fit and battery placement together, because one can obstruct the other. Install only to the supplied documentation, obtain qualified checks where your skills end, and keep a list of replacement-part identifiers. Park Tool’s repair resources and Sheldon Brown’s technical archive can help explain bicycle terminology; neither substitutes for the specific manufacturer’s limits.
Your decision record should end with one of three outcomes: proceed with a documented compatible system, seek an in-person assessment, or keep the bicycle unmodified. All three are sensible results. The next step, if compatibility holds, is to plan a secure battery arrangement before any electrical connection is made.
